Product details of the silicon steel core


Quick Overview

To manufacture silicon steel core, we adopt lean production method, giving faster turnaround time and flawless accuracy. Several tests were performed at each stage of production to ensure consistency in product quality. nicore's silicon steel core can be used in multiple industries. Our customers can design our silicon steel core and send us drawing to produce.


Product Description

With a focus on product's quality, our company pursues perfection in every detail.

Conventional silicon steels are widely used for electrical power apparatus, electrical components of industrial products, and home electronics. However, most silicon steel strips are thicker than 0.20mm and only applied to apparatus operated at industrial frequencies.

The thin silicon steel strips are suitable for being used at higher frequencies. The thickness of the silicon steel strips haVE been reduced to the world's thinnest level, reducing the core loss caused by eddy currents. Combined with the insulation coating technology, the lamination factor is improved.

The thin silicon steel strips improve energy consumption and reduce size in high-frequency reactors, transformers, and motors.

The thin silicon steel strips reduce cost and improve the equipment performance at high frequencies.


Characteristics


■ Low Core Loss

   Low core loss at high frequencies improves equipment efficiency and reduce energy consumption of reactors and transformers.


■ High Permeability

   For shields applications.


■ High Saturation Flux Density

  For downsized high frequency reactors and transformers.

■ Excellent insulation coating

  Excellent insulation property enables ideal stress relief annealing (results).


Magnetic Parameters


Table 1 Core loss properties
GradeCore loss (W/K
W15/50W15/100W10/400W10/1000W5/2000W2/5000W1/10000W0.5/20000
GT-1001.23.06.121.318.015.210.413.0
GT-0501.75.07.317.13.010.27.15.3


Table 2 Permeability and magnetic flux density properties
Grade
Alternating permeability x 10-3 (H/m)Magnetic flux density (T)
μ10/400μ10/1000μ5/2000μ1/10000μ0.5/20000B8B25B50
GT-10020.416.29.62.81.21.82------
GT-05016.616.09.92.71.51.75------


Note: The specimens are taken from the strips parallel to the rolling direction. The measurements are in accordance with JIS C 2550 after stress relief annealing.


Table 3 Mechanical and electric properties
Grade

Density

(g/cm3)

Space factor

(%)

Tensile strength

(N/mm2)

Elongation

(%)

Hardness

(Hv)

Specific resistance

(μΩcm)

GT-1007.65934209202*248
GT-0507.659038711179*248

Note: 1. Tensile strength and elongation are measured parallel to the rolling direction.

          2. Hardness are measured by *1: H;0.5Kg, *2: H;0.3Kg, *3: H;0.1Kg.



Table 4 Comparison of properties between various magnetic materials
Material

Magnetic flux density

B8 (T)

DC max relative

permeability μm

Core loss

W1/20000 (W/Kg)

Specific resistance

(μΩm)

GT-1001.8224,000350.48
GT-0501.7514,000510.48
High silicon steel (0.1t)1.2923,000310.82
Amorphous
1.56300,00061.30
Nanocrystalline1.2370,00040.01
Dust core (Sendust)0.6515062>10,000
Ferrite (Mn-Zn)0.453,5003>100,000


Magnetization Curves

■ GT-100

Factory Price Silicon Steel Core Manufacturer 5


Factory Price Silicon Steel Core Manufacturer 6


Factory Price Silicon Steel Core Manufacturer 7


■ GT-050


Factory Price Silicon Steel Core Manufacturer 8


Factory Price Silicon Steel Core Manufacturer 9


Factory Price Silicon Steel Core Manufacturer 10


Applications

Factory Price Silicon Steel Core Manufacturer 11


Factory Price Silicon Steel Core Manufacturer 12


Factory Price Silicon Steel Core Manufacturer 13


Material: Imported Japanese 0.05mm, 0.10mm oriented thin-gauge silicon steels.

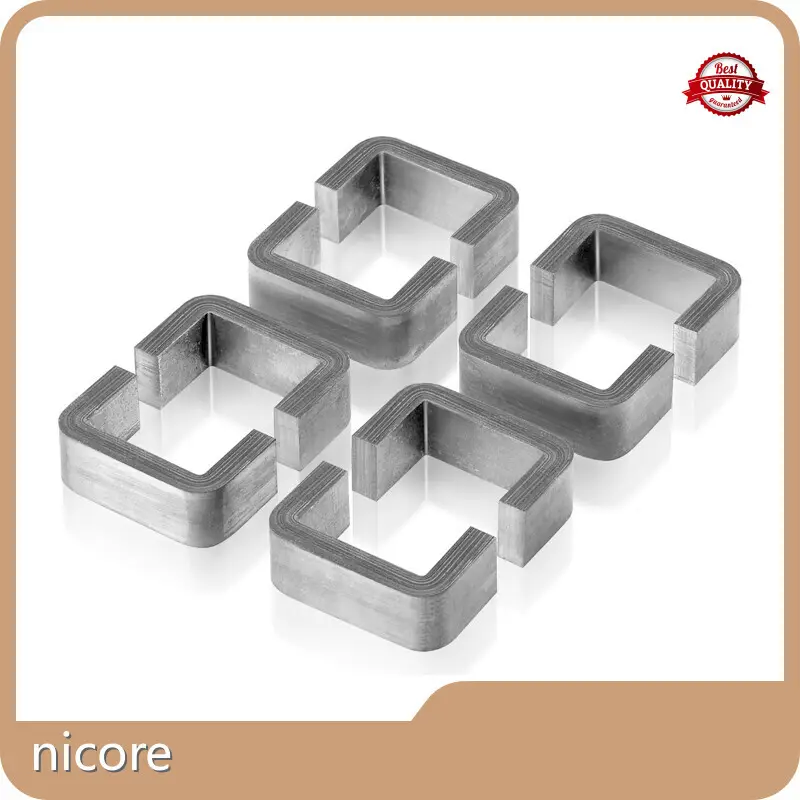

Features: NICORE produces tape wound cores, block cores, U-cores and other special cores with high quality steels according to customers requirements.
