Magnetic core manufacturer since 1995.

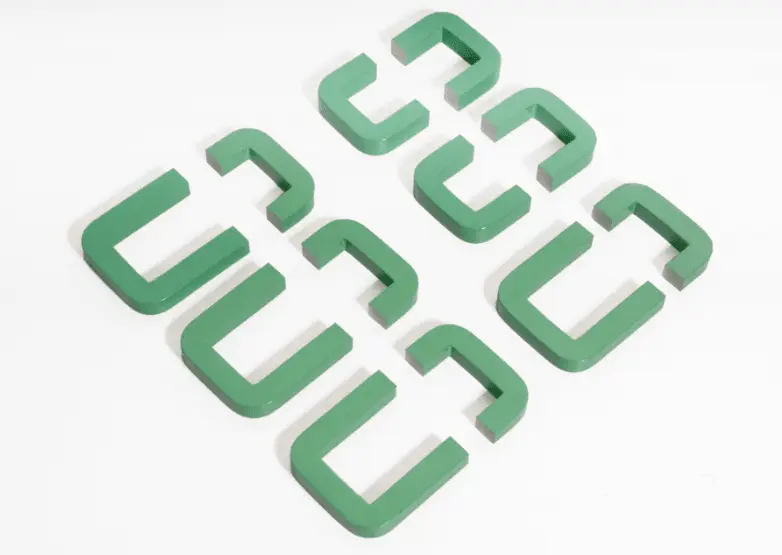

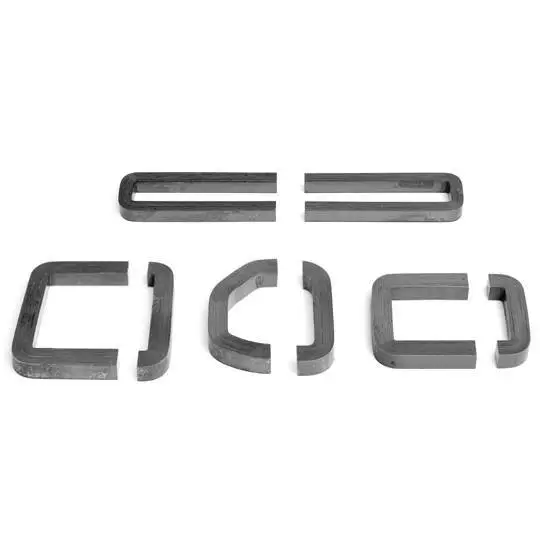

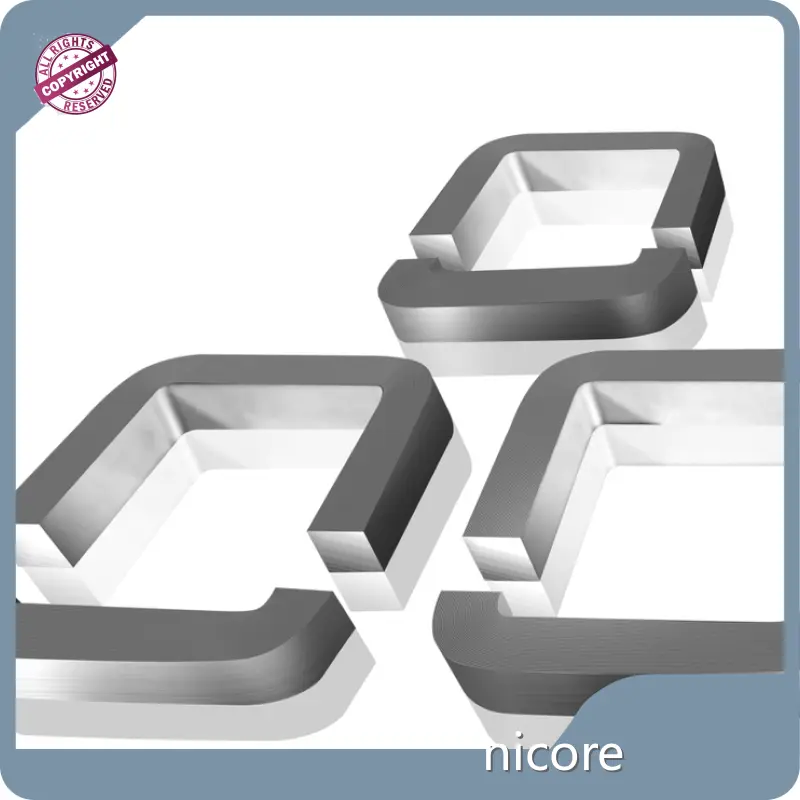

Current Transformer Core NICORE Current Transformer CoreSupply 1
Current Transformer Core NICORE Current Transformer CoreSupply 2
Current Transformer Core NICORE Current Transformer CoreSupply 3
Current Transformer Core NICORE Current Transformer CoreSupply 1
Current Transformer Core NICORE Current Transformer CoreSupply 2
Current Transformer Core NICORE Current Transformer CoreSupply 3

Current Transformer Core NICORE Current Transformer CoreSupply

Trade Mark:
NICORE
Standard:
Customized Dimensions
Certificates:
RoHs, REACH
Delivery time:
Samples: 5~7 days; Batches: 7~30 days accordingly.
Payment term:
TT or L/C
Inquiry

Material:

CRGO silicon steel with characteristics of low iron-loss and high permeability in thickness of 0.23mm, 0.27mm.


Characteristic:

Cores are wound by our independently-developed winding machine and are high vacuum heat treated. Asymmetric cutting is acceptable. They come in shapes of UI, UU, and toroidal with precise dimensions.


Application:

Mainly used in the current transformers for electricity acquisition and detection. Square and round hole shapes are available.


Advantages:

High accuracy

Adopting the appropriate current transformer structure and the compensation-control method, the split current transformer can achieve very high accuracy and provide protection for accurate measurement.

Wide measurement range

The split current transformer core has a gap which broadens the unsaturated region of the magnetization. Therefore, the maximum current measured by the split current transformer is much larger than that measured by the current transformer with a closed structure. For example, the split current transformer core has a wider measuring range.

Non-invasive

Because of the open-close structure, the high precision split current transformer can be clamped directly on the measured conductor, and then the non-invasive measurement can be carried out without cutting off the circuit.

Strong anti-saturation ability

The split current transformer core has a gap which strengthens the saturation magnetic flux density of the core. Besides, the influence of residual magnetism on the split current transformer is lower than that on the closed structure current transformer. These make the split current transformer a strong anti-saturation capability.


  Feedback


Company Advantages

· current transformer core is manufactured by using superior quality raw material and progressive technology under the vigilance of proficient professionals.

· With the raw material and latest technology, our current transformer core is worth your recommendation.

· has highly skilled technical engineers and well-trained sales staff.


Company Features

· has been praised by the peers for many times. We are an expert with years of experience in developing and manufacturing current transformer core.

· We have people with a diversity of experience. Based on their professional foundation, namely the expertise accumulated over years in the current transformer core industry, they will identify and implement the optimum solution for each problem.

· holds the idea that attitude is everything, so we are always keen on improving the quality. Welcome to visit our factory!


Application of the Product

nicore's current transformer core has a wide range of applications.

We work hard to develop solutions that best meet the needs of our customers based on their actual situation, so as to help each customer succeed.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
